Product Details
Our wet film thickness testers are ideal for testing the thickness of paints, resins, lacquers, varnishes and gels.
These helpful film thickness gauges are hexagonal / octagonal precision measuring combs, made from high grade stainless steel. They feature a series of notches like the teeth on a comb.
Wet film thickness gauge options
We have three models available for several different applications. See the options below:
TQC Sheen Wet Film Thickness Gauge WG I:
- 20-370 µm in 24 steps (6×4) for decorative paints and primers.
- Side 1: 20, 30, 40, 50
- Side 2: 60, 70, 80, 90
- Side 3: 100, 110, 120, 130
- Side 4: 150, 170, 190, 210
- Side 5: 230, 250, 270, 290
- Side 6: 310, 330, 350, 370

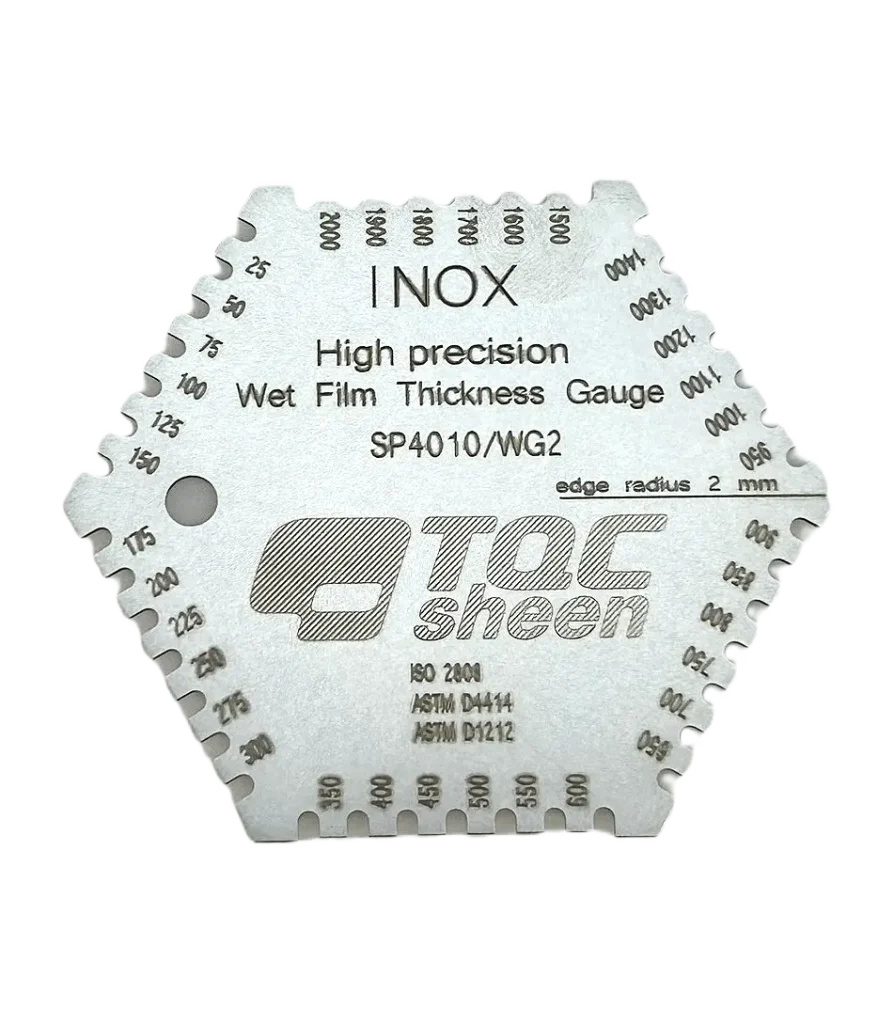

TQC Sheen Wet Film Thickness Gauge WG II:
- 25-2000 µm in 36 steps (6×6) With edge radius check (2mm) for protective coatings and high solids.
- Side 1: 25, 50, 75, 100, 125, 150
- Side 2: 175, 200, 225, 250, 275, 300
- Side 3: 350, 400, 450, 500, 550, 600
- Side 4: 650, 700, 750, 800, 850, 900
- Side 5: 950, 1000, 1100, 1200, 1300, 1400
- Side 6: 1500, 1600, 1700, 1800, 1900, 2000
TQC Sheen Wet Film Thickness Gauge WG III:
- 50-10000 µm in 72 steps (8×9) for extremely thick films such as floor coatings, fillers, fire proofing, plaster, adhesives etc.
- Side 1: 50, 100, 150, 200, 250, 300, 350, 400, 450
- Side 2: 500, 550, 600, 650, 700, 750, 800, 850, 900
- Side 3: 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800
- Side 4: 1900, 2000, 2100, 2200, 2300, 2400, 2500, 2600, 2700
- Side 5: 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 3600
- Side 6: 3700, 3800, 3900, 4000, 4100, 4200, 4300, 4400, 4500
- Side 7: 4600, 4700, 4800, 4900, 5000, 5100, 5200, 5300, 5400
- Side 8: 5500, 6000, 6500, 7000, 8000, 8500, 9000, 10000
Tough film thickness gauge inspection
Made from high grade steel, the gauges can withstand acid or base elements, and be relied on across a wide variety of applications and environments.
Top wet film thickness testing – as standard
Our wet film thickness gauges comply with the stringent requirements of multiple international standards bodies including ISO 2808, JIS Z2371, ASTM D4414 and ASTM D713.
