Microbiological Incubator Model SMI12

Dual-stacked Incubator., 332 L | Touch Screen

Dual-stacked Incubator., 332 L | Touch Screen

Loading...

Description

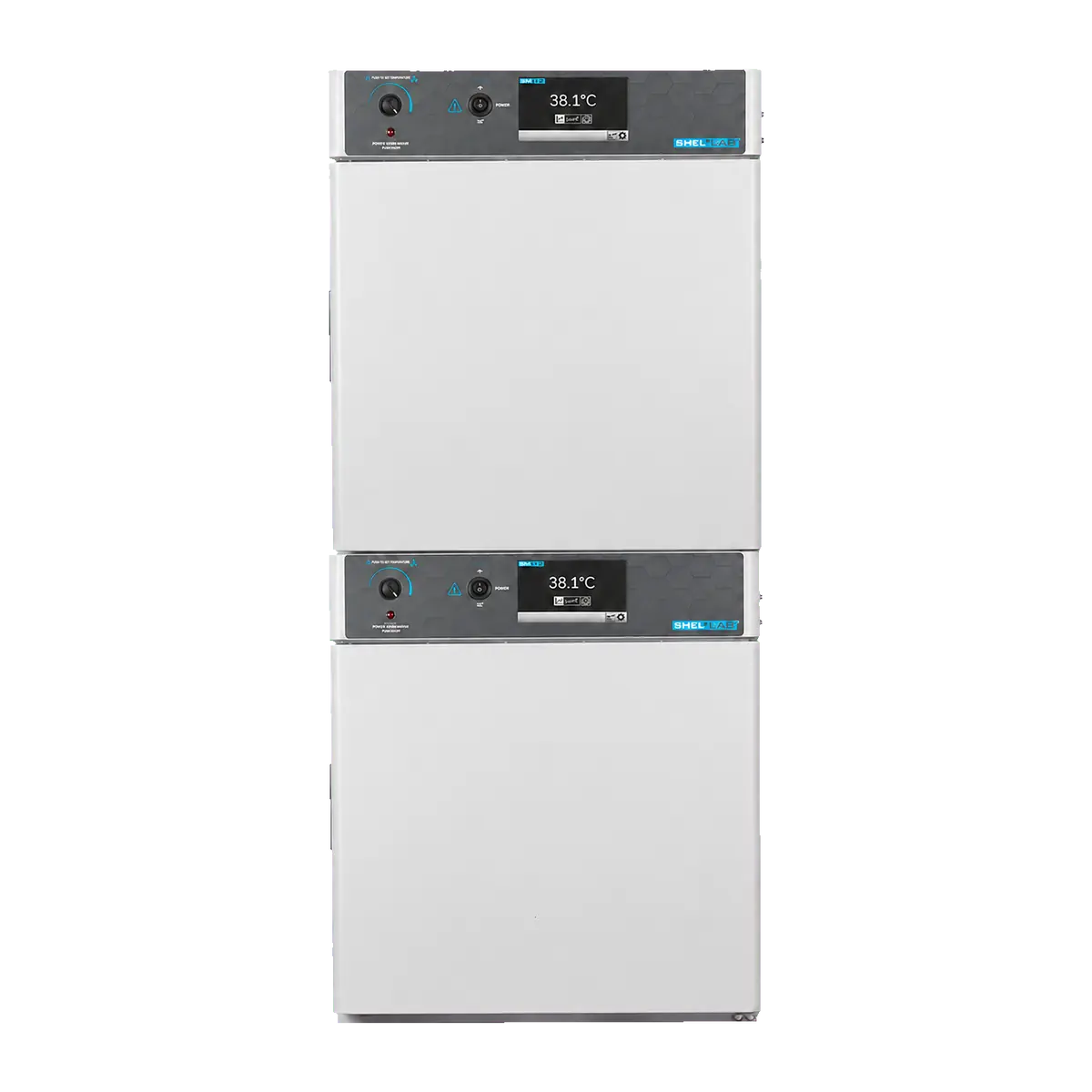

SMI12 SHEL LAB Microbiological Incubator is 11.7 cubic feet (332 L). This dual-stacked incubator is perfect for general cell culture and constant temperature applications.

The SHEL LAB Microbiological Incubator Series has been redesigned for optimum performance. Ranging in size from 2 to 11.7 cubic feet (57 to 331 liters), the SMI Series will fit any workspace.

NEW – Touch Screen Updates
The SHEL LAB SMI Series touch screen user interface received a complete overhaul!
Now featuring:
  • Improved real-time clock accuracy
  • Updated screen color theme from blue to black
  • New access points for setpoint, alarms, and datalog export
  • Replaced some text items with screen icons for better clarity

Significantly updating SHEL LAB’s Microbiological Incubators, the new 7-inch display provides advanced control functions. With on-screen graphing and real-time data, the new SMI controller provides the highest levels of sample security and traceability.

More features of the SMI incubators include:

  • 7” capacitive touch screen usable with laboratory gloves
  • Real-time clock for logging events
  • Door alarm
  • On-screen data graphing
  • 4-20ma output for a chart recorder or central facility recording
  • Interior outlet
  • Viewing door
  • Stainless steel interior

SPECIFICATION

SPECIFICATIONS
Exterior Dimensions (W × D × H)
25.3 × 27.3 × 76.0
(643 mm × 693 mm × 1930 mm)
Operating Temperature Range
Amb +8°C – 70°C
Interior Dimensions (W × D × H)
19.5 × 20 × 26
(495 mm × 508 mm × 660 mm)
Temperature Uniformity – Midrange
0.5 °C
Volume
11.7 cu.ft. (332 L)
Temperature Stability – Midrange
0.1 °C
Shelf Dimensions (W × D)
18.3 × 18.3 (465 mm × 465 mm)
Controller Type
Digital
Unit Weight
316.0 lbs (143.3 kg)
Display Resolution
0.1 °C
Interior Metal
430 SST
Power Voltage , Frequency and Current
100-120 VAC, 50/60 Hz, 12.0 Amps
Exterior Metal
Painted Cold Roll Steel
Max HVAC Load
3720 BTUs/hr
Safety Certifications
UL 61010-1, EN 61010-1, CSA 61010-1, CE
