Description

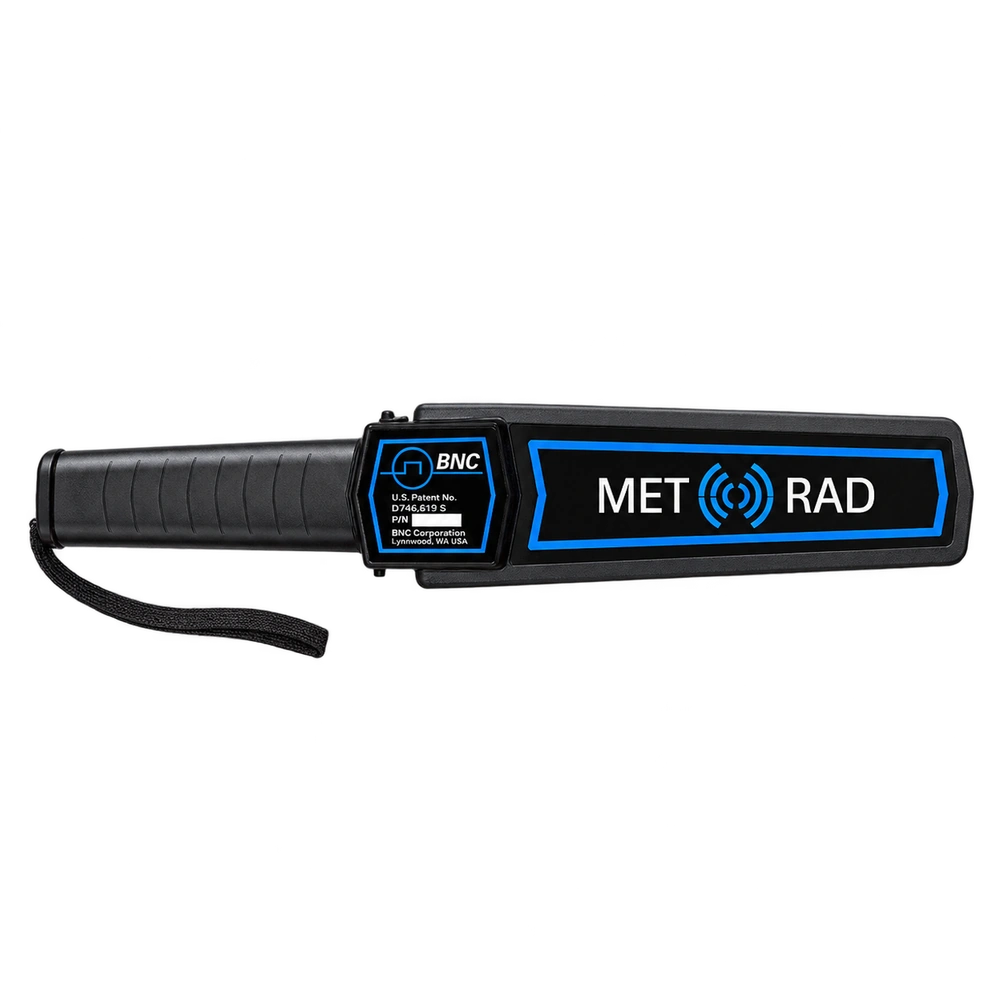

The MetRad 1 combines metal and radiation detection in a single handheld scanner for fast localization of potential threats. Its compact, lightweight design allows inspectors to screen baggage and personnel quickly, while its dual-function detection supports screening for heavily shielded nuclear material.
An efficient CsI(Tl) detector with SiPM readout delivers the radiation response, supported by rugged construction for daily field use. Automatic calibration and disposable or rechargeable battery options simplify deployment. Audible and vibration alarms, together with a three-color LED indicator, help operators distinguish metal alarms from radiation alarms.
Key Features
- High sensitivity for radiation and metal detection in one handheld unit
- Automatic calibration to accommodate changing background radiation levels
- Rugged, lightweight construction for repeated daily scanning
- Audible and vibration alarms with separate LED indications for gamma and metal detection
- Detection of heavily shielded nuclear material that gamma-only screening may miss
- Disposable or rechargeable battery options for convenient deployment
Detector & Performance
Radiation detection uses a 3 cm³ CsI(Tl) scintillator with SiPM readout, combining strong light output with a compact, rugged design. The SiPM supports a small, shock-tolerant detector for screening weak or shielded sources. The gamma energy range extends from 15 keV to 3 MeV.
Automatic calibration adjusts to the local background radiation level as inspectors move between screening locations. Minimum metal-detection distances in air range from 100 mm for a magnetic plate to 200 mm for a pistol or lead container.
Alarm Indicators
The three-color LED provides a clear indication of operating status and alarm type.
| LED Color | Indication |
|---|---|
| Green | Power on |
| Blue | Gamma radiation alarm |
| Red | Metal alarm |
