Test virtually any material capable of flow and displacement – not just free flowing powders. Impose extremely gentle through to aggressive flows, and measure the resulting force to characterise the sample under those controlled conditions. Users can define sample flow to suit the sample type and characteristic of interest, or to be complementary to the process conditions experienced by the sample
Apply multiple actions
Compaction, slice, shear, lift/aeration are all achievable and test programmable in the manner most suited to the sample and your process need.

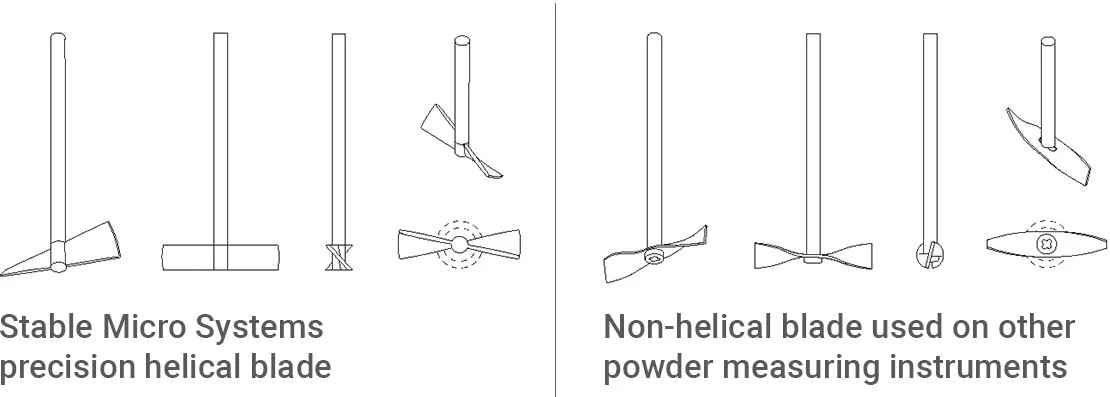

Our blade is a true helix and can be mathematically described, unlike the blades fitted to other powder measuring devices on the market.
FEATURES
Powder Flow Analyser Controlled Flow provides:
User programmable tests that displace the sample by slicing, shearing, compressing, compacting, mixing, and aerating; in any combination, and in any sequence.
Exact repetition of the test sequence best suited to your need, time after time. Test settings can be optimised to show the maximum differentiation between similar products, or to imitate the process or storage handling conditions experienced by the product.
Independence from variable sample loading by pre-conditioning at the start of the test.
Extremely gentle through to aggressive displacements.
Measurement and analysis of force, time, and distance — parameters that define the sample behaviour during the programmed Controlled Flow.
Objective, numeric, automated analysis, characterising the flow behaviour of the sample during Controlled Flow.
Features and benefits of the PFA
Repeatability and Reproducibility
Controlled Sample Flow enables the powder column sample to be pre-conditioned before the actual test cycle. This provides independence from operator sample loading techniques and results in repeatable sample flow programs that provide reproducible results.
Precision machined and surface finished rotors and blades for displacing the powder and borosilicate glass or stainless steel test vessels assist in reproducibility of results. Meanwhile, software allows data capture at up to 2000 points per second (pps) providing detail for analysis enhancement.
Sample size
From less than 20ml to over 200ml – where samples of bulk solids are extremely rare or very expensive, e.g. in the pharmaceutical industry, samples down to 20ml can be analysed.
Ease of use
Samples can be pre loaded into sample vessels and pre conditioned for humidity and temperature. Additionally, test vessel bases are easily removed to enable thorough, simple cleaning.
Flexibility and versatility
Customise sample test projects, create your own protocols to test in another way or analyse data to collect additional parameters.
Measure additional physical parameters of your powder or finished product (e.g. Unconfined Yield Stress, Granule Crush Strength, Cake Compression Strength) with optional accessories for the Texture Analyser. The testing possibilities are endless.
Avoid typical problems
Manufacturers can assess and avoid typical problems such as batch and source variation of ingredients, caking during storage or transportation and problems with discharging from hoppers or bins.
