PRODUCT DETAILS

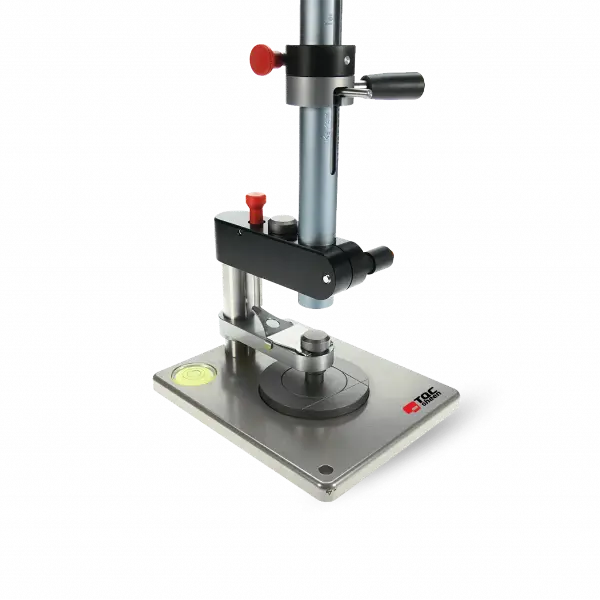

A range of impact test models
SP1880: Impact test according to ISO 6272-2 / ASTM D2794
Impact tester with which indirect impact tests can be performed according to ISO 6272-2 / ASTM D2794
Content: base plate assembly, guide tube, release collar, punch Ø12,7 mm , punch Ø15,9 mm, weight 1 kg, die
Ø16,3 mm. Max test panel thickness: 4,5 mm
This item is also included in the Qualicoat kit.
SP1890: Impact test according to ISO 6272-1
Impact tester with which direct impact tests can be performed according to ISO 6272-1
Content: base plate assembly, guide tube, release collar, clamp device, ball Ø20 mm, die 27mm, weight 1000 gr
Max. test panel thickness: 1,25mm
SP1891: Impact test according to ISO 6272-1 / ASTM D2794 (before 1993)
Impact test with which direct impact tests can be performed acc. to ISO 6272-1 and ASTM D2794 (before 1993).
Content: base plate assembly, guide tube, release collar, clamp device, ball Ø20
mm, die 27mm, weight 1000 gr, ball Ø15,9 mm, die 16,3mm, weight 900 gr
SP1895: Impact test according to ASTM G14
Impact test with which direct impact test can be performed according to ASTM G14
Content: base plate assembly, guide tube, release collar, clamp device, punch Ø15.9
mm, weight 1.361 kg and a V-notch vise with spring clamp to hold the pipe
SP1896: Impact Test according to CSA
Perfect impact testing as standard
Our paint impact testing machine is compatible with a range of international standards including DIN/ISO 6272, ASTM D2794 and ASTM G14.
