Product Details

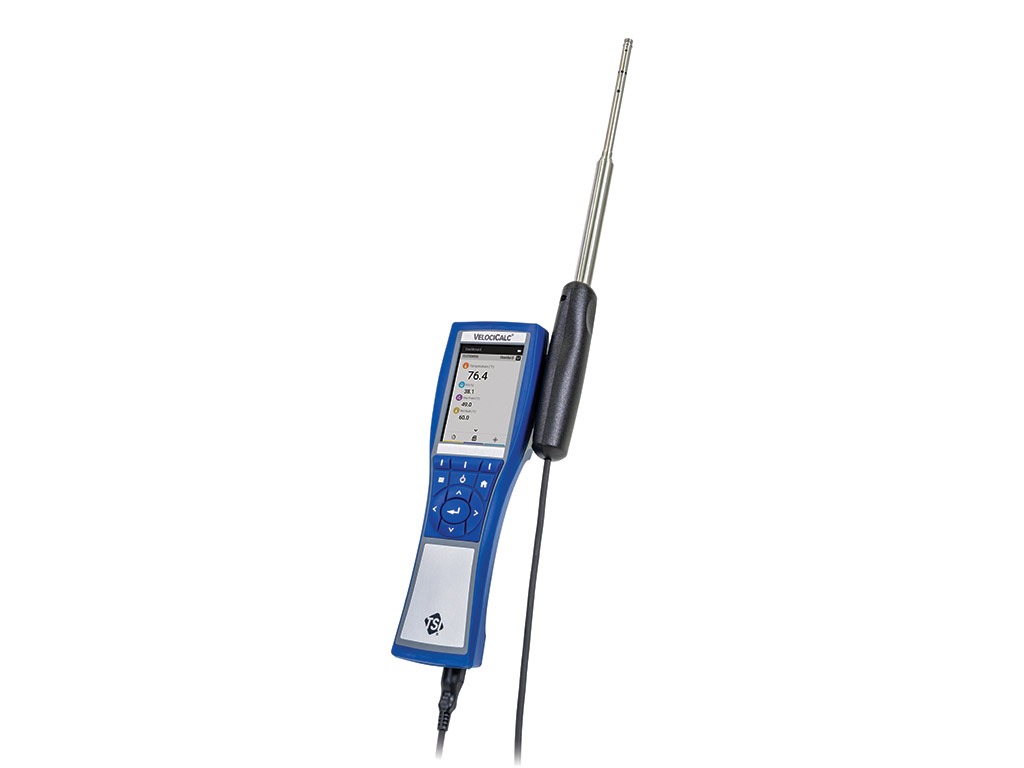

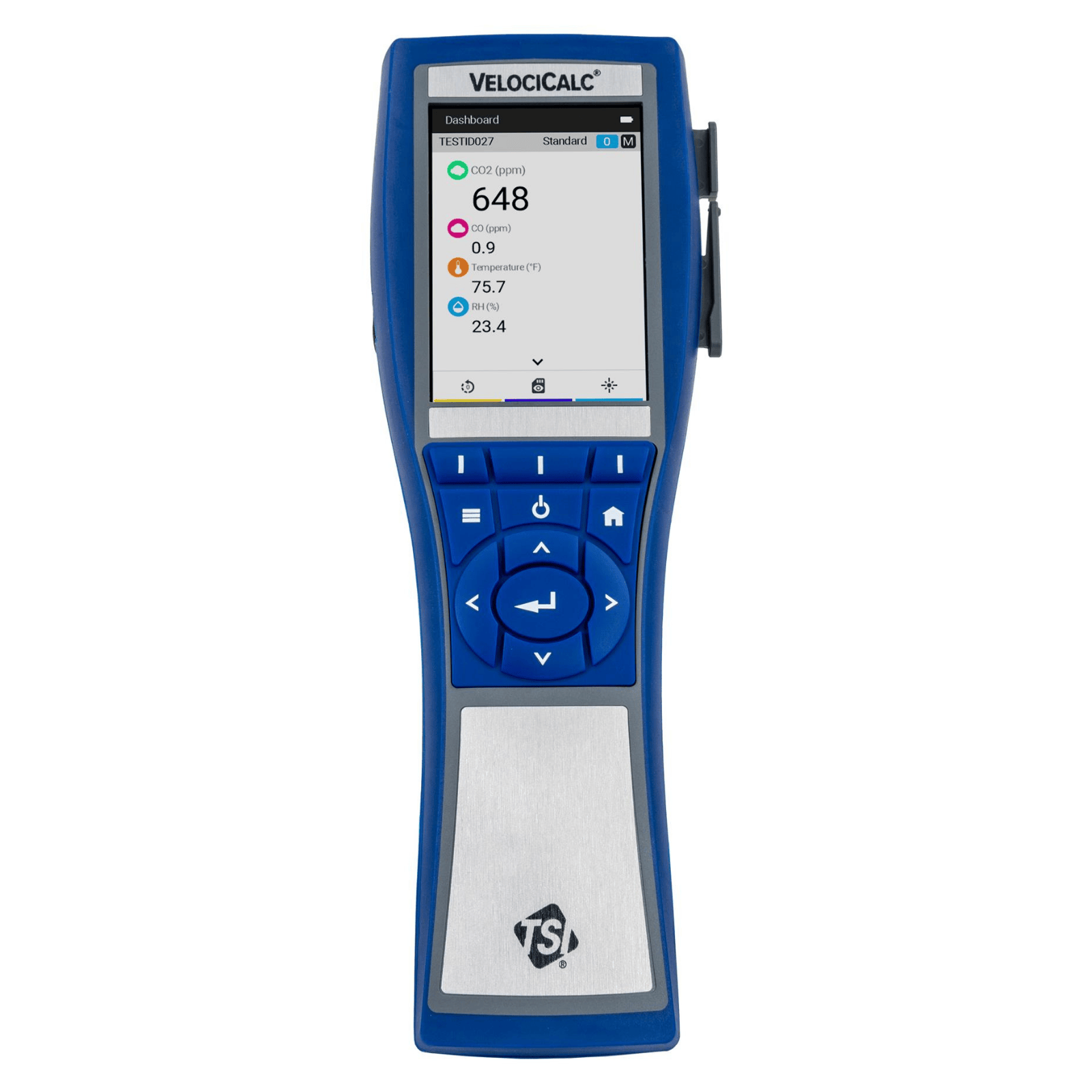

The VelociCalc® Meter Model 9650 is used to measure HVAC system pressures and can be connected to pitot probes for performing duct traverses. It’s ergonomic design includes a probe holder and integrated magnets allowing for attachment to exposed ductwork or other metallic surfaces for hands-free operation. The Model 9650 is designed to work with a wide range of plug-in probes for measuring air velocities or IAQ parameters. In addition, the 9650 includes built-in workflows for calculating the percentage of outside air when used with an IAQ probe, heat flow calculations for testing heating and cooling coils when used with probe Model 964 or 966, and grid guided duct traverse methodologies.
Features and Benefits
- Large, high-resolution color display
- Intuitive menu structure allows for ease of use and setup
- Optional smart plug-in probes, including thermoanemometer, rotating vane and CO2 probes with calibration certificates
- Input for K-alloy thermocouple
- User-customizable soft keys for quick access to common functions
- Calculate the percentage of outdoor air with IAQ probe
- Integrated magnets for hands-free operation
- Supports multiple languages
- Air density compensation with on board barometric pressure sensor and temperature input
- Static and differential pressure measurement
- Pitot probe duct traverse
- Programmable K-factors
- Print data from instrument with optional USB portable printer (802241)
- Print data from instrument with optional bluetooth wireless portable printer (802241) Model 9650 only
- Step by step guided workflows:
- Heat flow calculations in BTU/hr or kW
- Percentage of outdoor air
- Duct traverse grid measurements for:
- ASHRAE 111 log-Tchebycheff
- ASHRAE 111 equal area
- EN 12599
- EN 16211
Applications
- HVAC testing and balancing
- Clean room testing
- Biological safety cabinet and laboratory fume hood testing
- HVAC commissioning and troubleshooting
- IAQ investigations
- Ventilation effectiveness with percent outside air calculation
Meter Model Functions Comparison
| PARAMETER / FUNCTION | 9600 | 9630 | 9650 |
|---|---|---|---|
| Barometric Pressure | ● | ● | ● |
| Differential Pressure | ● | ● | |

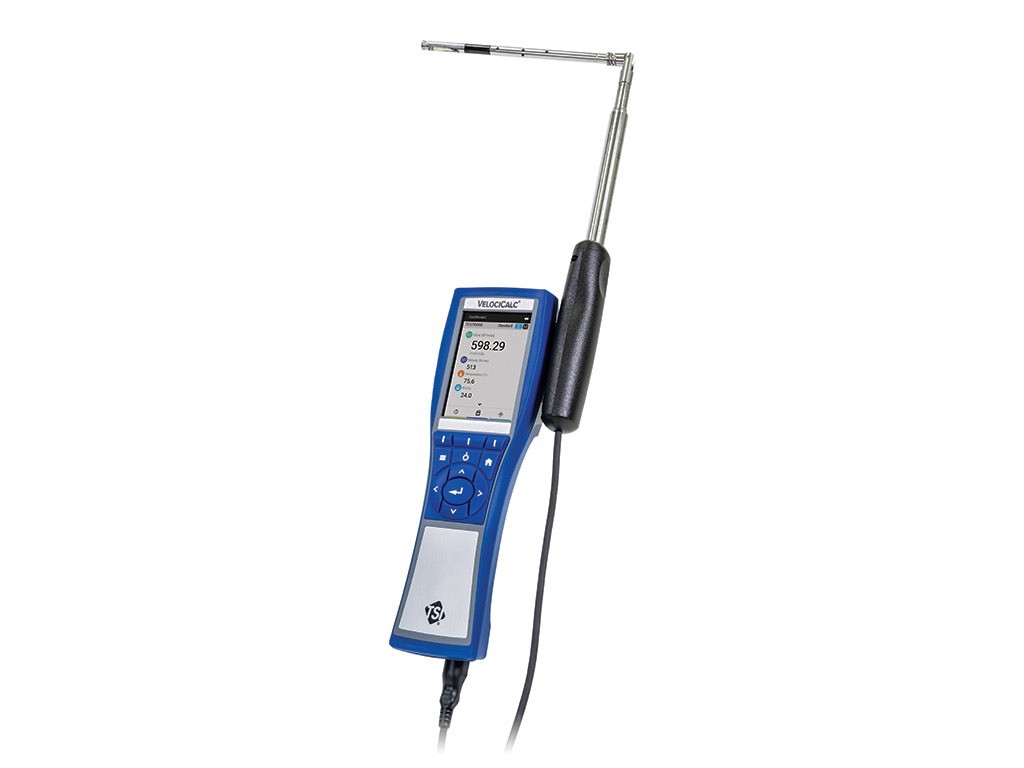

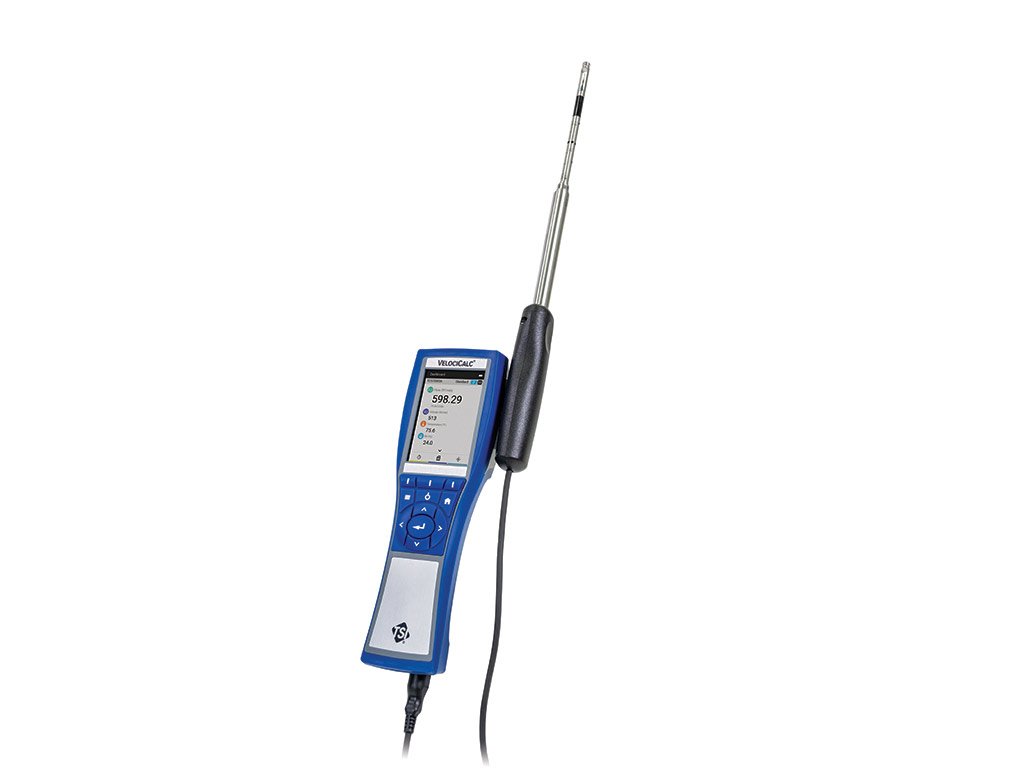

| Thermoanemometer Probes (960, 962, 964, 966) | ○ | ○ | ○ |

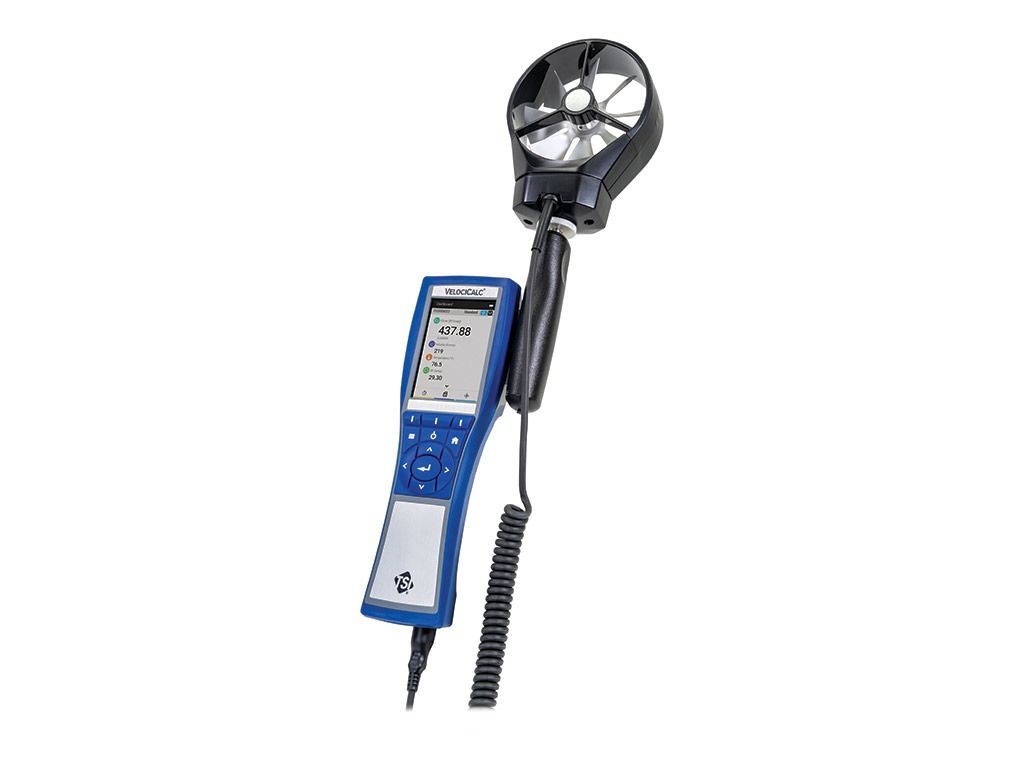

| Rotating Vane Probe (995) | ○ | ○ | ○ |

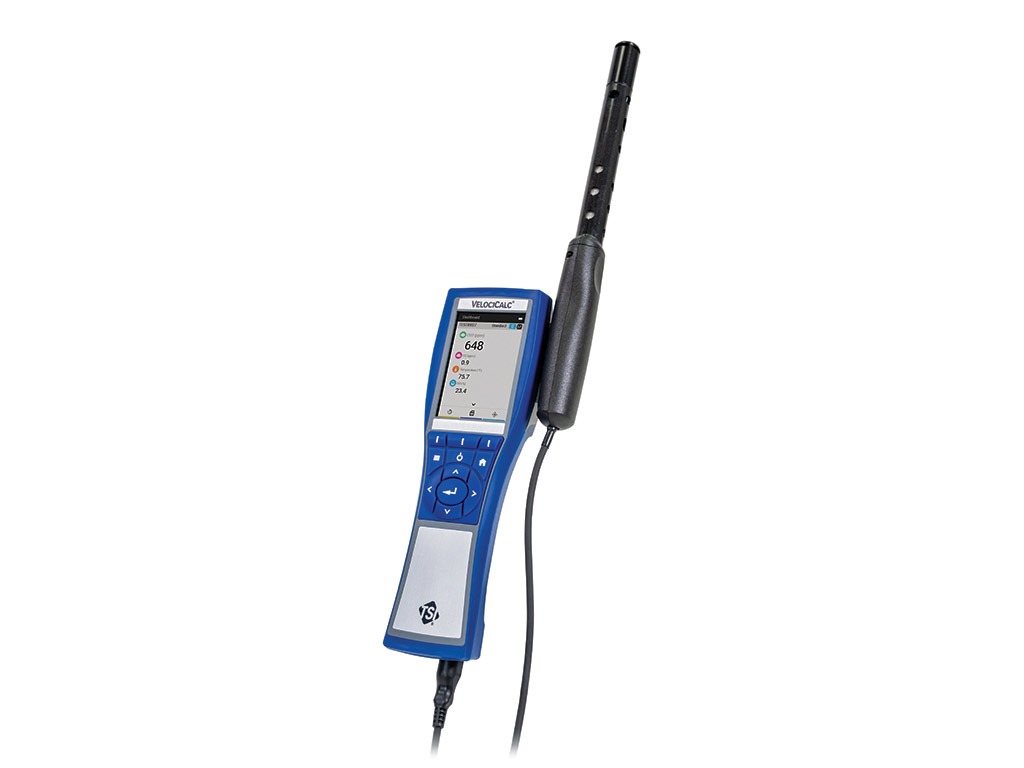

| IAQ Probes (980, 982) | ○ | ○ | ○ |
| Pitot Probe | ○ | ○ | |
| Air Density Correction | ● | ● | ● |
| Calculate Flow | ● | ● | ● |
| K-factor Flow | ● | ● | |
| % Outside Air Calculation | ● | ● | ● |
| ASHRAE 111 Log-Tchebycheff Duct Traverse Workflow | ● | ||
| ASHRAE 111 Equal Area Duct Traverse Workflow | ● | ||
| EN 16211 Duct Traverse Workflow | ● | ||
| EN 12599 Duct Traverse Workflow | ● | ||
| Heat Flow Calculation (BTU/h, kW) | ● | ||
| Wired USB Printer | ○ | ○ | ○ |
| Bluetooth Printer | ○ |
○ = Optional
