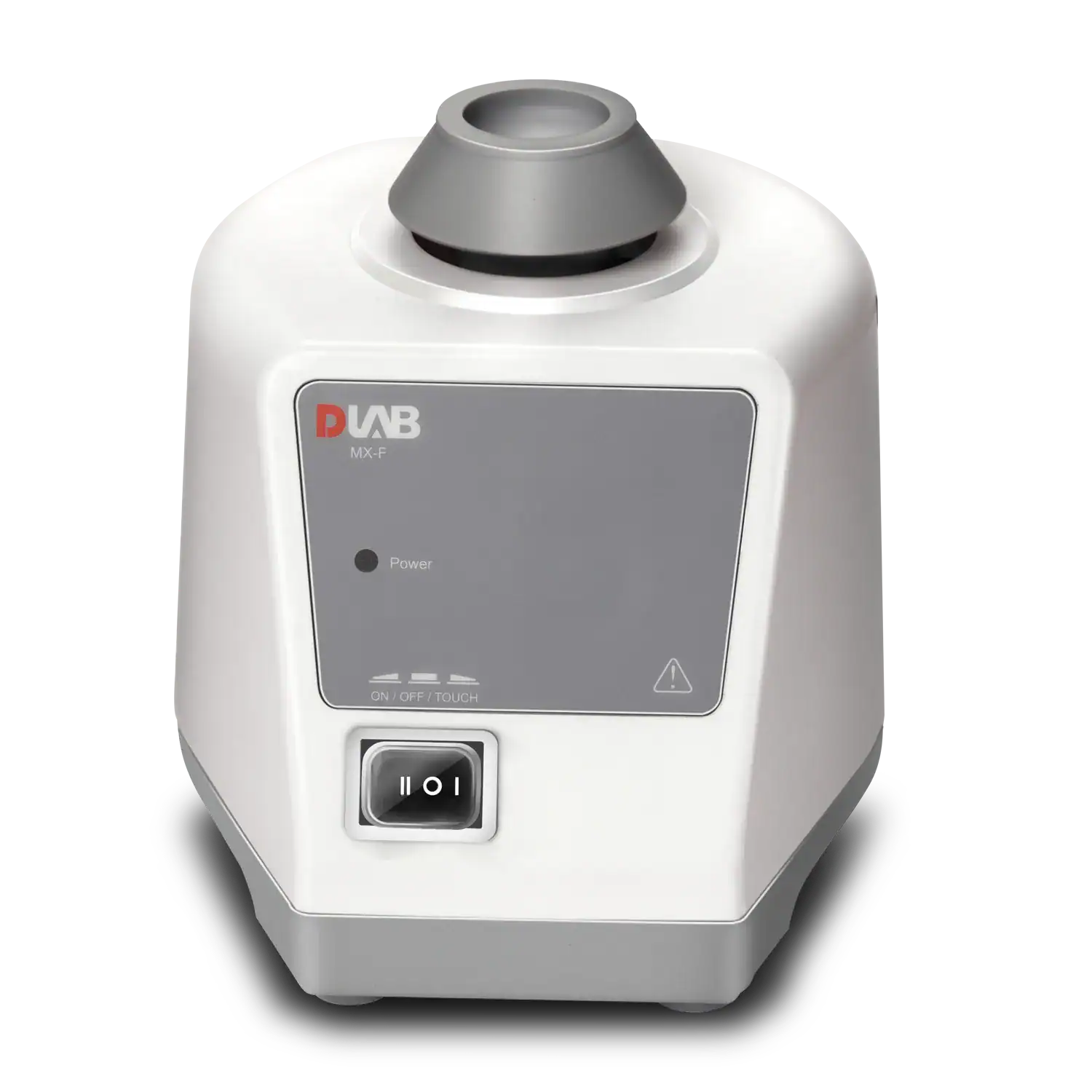

MX-F Fixed speed Vortex Mixer

Fixed-speed vortex mixer at 3,000 rpm for fast and consistent sample mixing.

Fixed-speed vortex mixer at 3,000 rpm for fast and consistent sample mixing.

Loading...

Description

The MX-F Fixed Speed Vortex Mixer is a compact, robust solution for rapid sample mixing in laboratories. Operating at a fixed speed of 3,000 rpm, it delivers consistent high-speed mixing performance, suitable for applications ranging from gentle resuspension to vigorous vortexing. The mixer supports both touch and continuous operation modes, offering flexibility for different lab workflows. A standard top head is included, allowing for mixing of single test tubes or small vessels up to 30mm in diameter.

Built with a solid aluminum-cast housing and a steel base, the MX-F provides excellent durability and mechanical stability. The integrated vacuum suction feet are specially designed to minimize movement and dampen vibration during operation, ensuring safe and quiet use. Additionally, its electronic speed control system maintains constant speed, even when sample load varies, ensuring reliable results every time.

PRODUCT PARAMETER

Parameter Value
Cat. No. 8031101000
Orbital diameter 4 mm
Speed display
Motor type Shaded pole motor
Motor rating output 10 W
Voltage 100–120 V / 200–240 V
Dimension [W×H×D] 127 × 130 × 160 mm
Permissible ambient temperature 5 – 40°C
Protection class IP20
Motion type Orbital
Speed range 3000 rpm (Fixed speed)
Run type Touch operation / Continuous
Motor rating input 58 W
Power 60 W
Frequency 50 / 60 Hz
Weight 2.0 kg
Permissible relative humidity 80% RH
