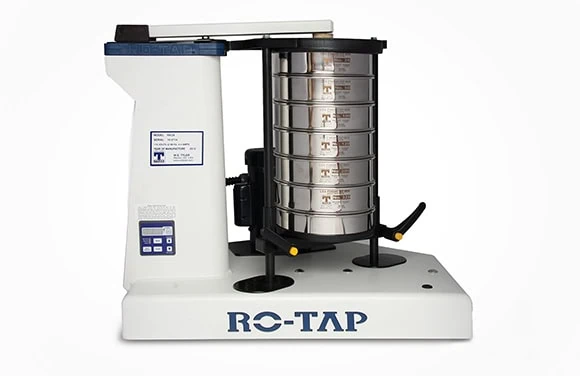

Mechanical Sieve Shaker (RO-TAP® RX-30 )

12-inch diameter test sieves

12-inch diameter test sieves

Loading...

Description

The gold standard in test sieve shakers, W.S. Tyler’s RO-TAP® utilizes a unique two-dimensional operation: a horizontal, circular, and vertical tapping motion. This dual action allows particles to stratify and “seek” critical openings in the test media.

In turn, the most accurate and consistent particle analysis testing is achieved with minimal maintenance.

The RX-30 model is designed for the use of 12-inch diameter test sieves.

Each unit is tested and serialized before shipment. It features a 99-minute digital timer/clock with a tolerance of .1 seconds.

SPECIFICATION

Dimensions 28 x 21 x 25 (71 cm x 54 cm x 64 cm)
Weight 180 lbs. (82kg)
Particle Size Range 4″ to US #635 mesh (20 um)
Test Sieve Compatibility 12″ or 300 Diameter
Oscillations Displacement 1-1/8″ x 7/16″
Oscillations Per Minute 278 +/- 10
Taps Per Minute 150 +/- 10
Test Sieve Stack (Full Height) 4 Sieves w/ Full Height Pan
6 Sieves w/ Half Height Pan
Test Sieve Stack (Half Height) 8 Sieves w Half Height Pan
