SKU:

JuniorLED

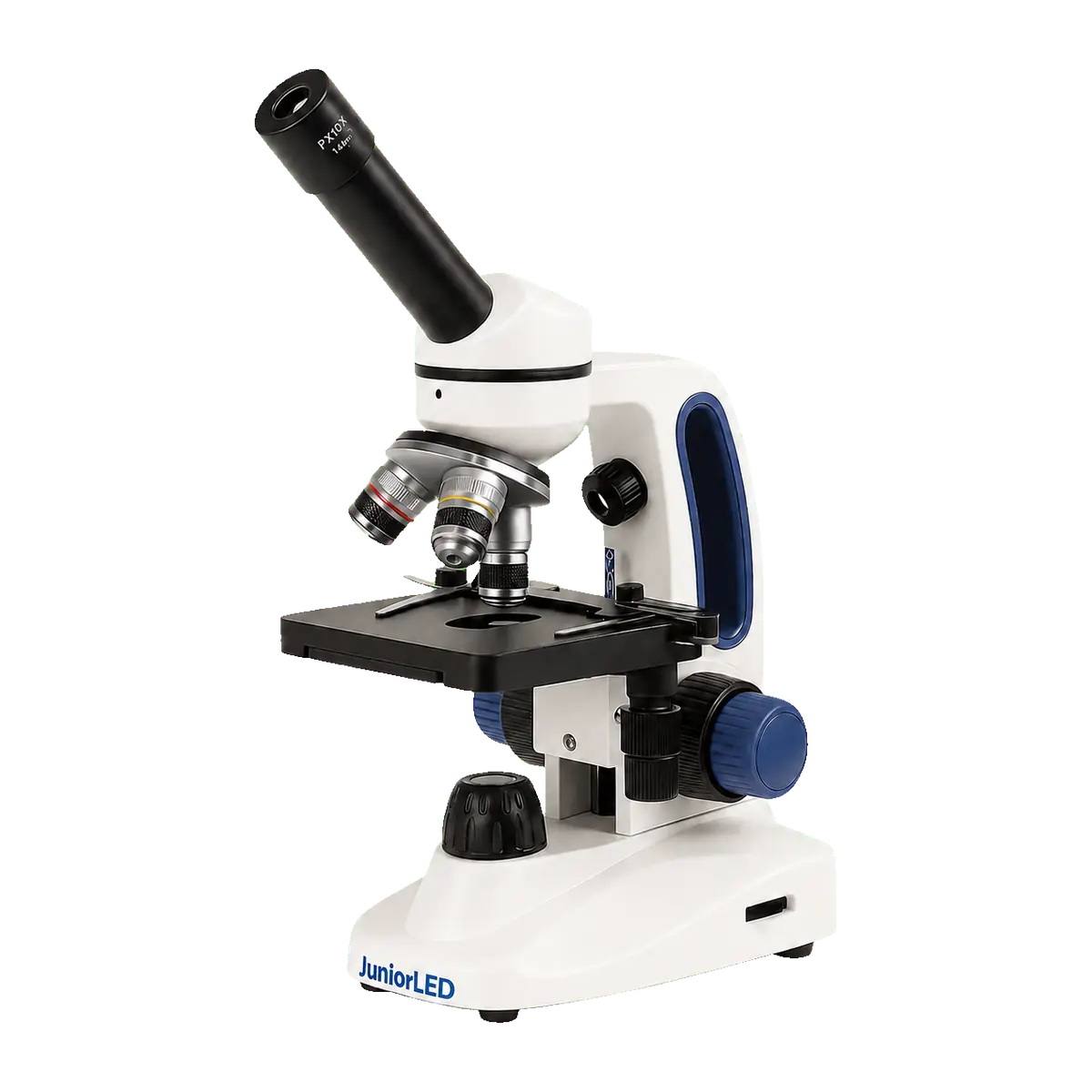

The JuniorLED microscope offers bright LED illumination, cordless use, and durable design — ideal for classroom learning.

The JuniorLED microscope offers bright LED illumination, cordless use, and durable design — ideal for classroom learning.

Loading...

Description

The JuniorLED series is an excellent entry-level choice for brightfield observation, designed with both performance and convenience in mind. Each microscope features an integrated X–Y mechanical stage for smooth and precise specimen positioning, ensuring a better learning and viewing experience. Dual LED illumination provides bright, even lighting for clear visibility under all magnifications, while the cordless operation enhances mobility and classroom safety. Its ergonomic carrying grip makes it easy to transport between workstations, making the JuniorLED microscope a reliable and practical solution for educators and students alike.

HIGHLIGHTS
  • Entry-level microscopes for brightfield observation
  • Integrated X-Y mechanical stage
  • Double LED illumination
  • Cordless operation
  • Ergonomic carrying grip

TECHNICAL INFORMATION

TECHNICAL SPECIFICATIONS

Specification Details
Eyepiece
  • Wide field WF 10x/16 mm eyepiece
  • Secured and with pointer
Head
  • Monocular models with 45° inclined tubes
  • 360° rotatable and secured
Nosepiece Revolving nosepiece for 3 objectives on ball bearings
Objectives
  • Achromatic 4x/0.10, 10x/0.25 and S40x/0.65 or Achromatic 4x/0.10, 10x/0.25 and S60x/0.85
  • S40x, S60x and S100x oil immersion objectives are spring-loaded
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
Focusing
  • Coaxial coarse and fine adjustments, 90 graduations, 0.02 µm per graduation, 2.35 mm per rotation, total travel ~20 mm
  • Adjustable rack stop to prevent damage to sample and objectives
Stage 95 × 105 mm stage with integrated 16 × 50 mm X-Y mechanical stage
Condenser Fixed condenser N.A. 0.65
Illumination
  • Adjustable transmitted and reflected 1 W LED illumination (all versions)
  • Internal rechargeable batteries with external 100–240 V, 5 V USB-C charger/mains adapter
Package Content
  • USB-C mains adapter-charger and three rechargeable AA batteries
  • Allen key, dust cover, user manual
  • Packed in polystyrene box
