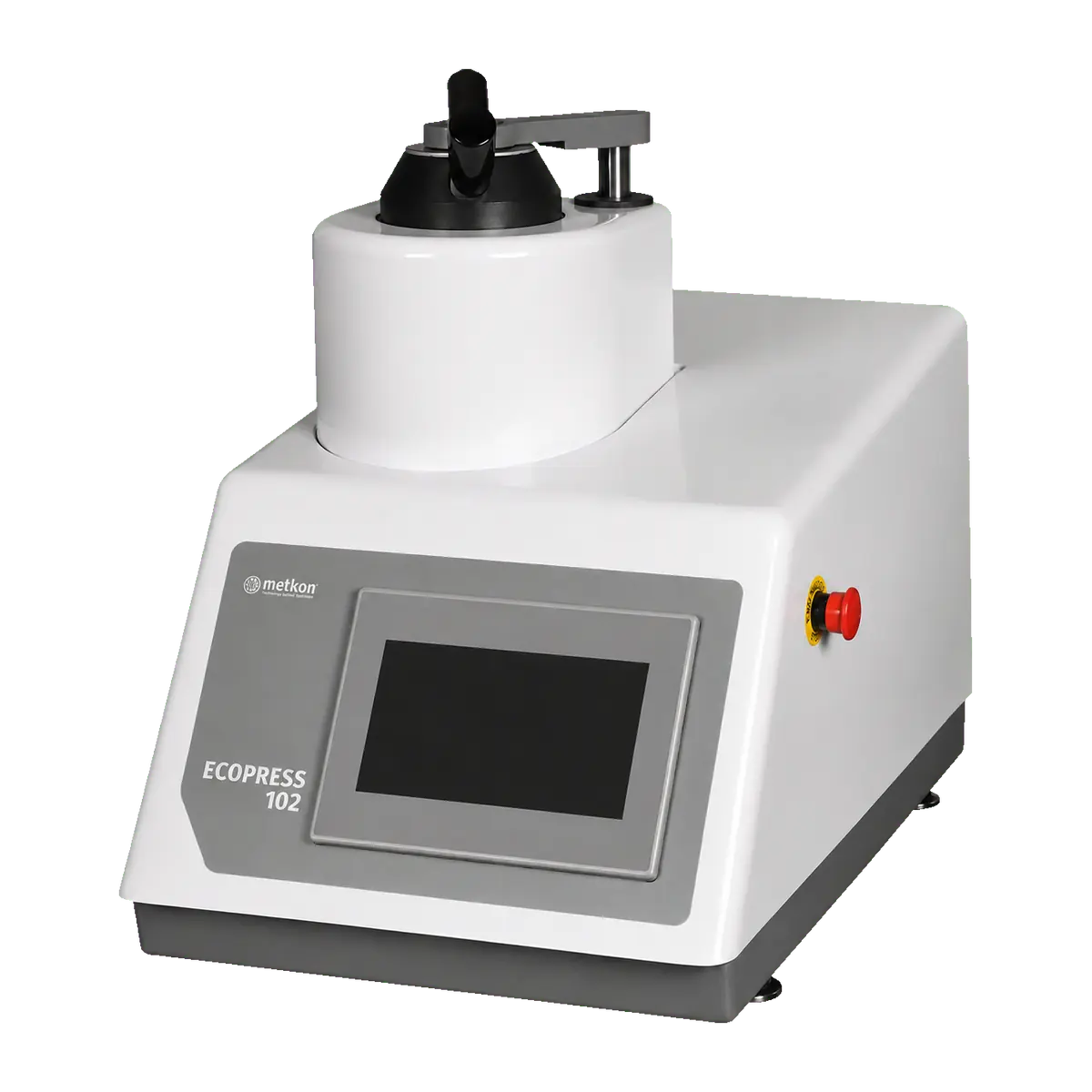

Hot Mounting (ECOPRESS 102/202)

Automatic digital mounting press with hydraulic pressure suitable for all current hot mounting materials used in materialography

Automatic digital mounting press with hydraulic pressure suitable for all current hot mounting materials used in materialography

Loading...

Product Details

ECOPRESS 102/202 is high capacity, state of the art automatic mounting press having advanced software with programmable coloured HMI touch screen controls. Robust bayonet closure allows for quick and safe operation. Wide selection of mould assemblies from 25 to 50 mm in diameter are available. Two mounts can be produced simultaneously with the use of an intermediate ram.

ECOPRESS 102/202 have pre-programmed moulding sequences built-in (factory set) from which you can choose according to your own applications. You only need to place the sample in the mould, select the program number for your specific application and depress the “Start” button. That’s it! ECOPRESS does the rest for you! After pressing the start key, the fully automatic program sequence is executed with the preselected parameters. The pressure, heating and cooling are automatically controlled and the total cycle time of a complete cool mount takes 7 to 9 minutes. The parameters can be changed and adjusted during the mounting process.

Features

  • 7" HMI touch screen
  • Siemens PLC control (ECOPRESS 202)
  • Programmable with LCD display & mounting sequences
  • Electro-hydraulic pressure (no air required)
  • 300 bar pressure, 200°C max temperature
  • Thermostatically controlled 1650W heating
  • Automatic cooling with standard & slow modes
  • Preheating & preloading (ECOPRESS 202)
  • Mold sizes: 25mm - 50mm
  • Bayonet closure, 230V, 1-phase, 50/60Hz
  • Mold assemblies ordered separately

SPECIFICATIONS

ORDER NO 25 11 25 12
MODEL NO ECOPRESS 102 ECOPRESS 202
Max. Pressure, bar 300 300
Max. Temperature, °C 200 200
Heating Power, W 1650 2×1650
Water Cooling Yes Yes
Slow Cooling Yes Yes
Operation Programmable/Hydraulic Programmable/Hydraulic
Display 7” HMI touch screen LCD 7” HMI touch screen LCD
Mould Assembly, mm 25-50 25-50
Size W x D x H, (cm) 36 x 55 x 48 49 x 55 x 48
Weight, (kg) 38 54
