Description
In order to achieve the desired mechanical properties of ceramic parts, the components must be sintered at high temperatures after debinding. With the high-temperature chamber furnaces as table-top or floor-standing models for maximum temperatures between 1400 °C and 1800 °C, Nabertherm offers a wide range of furnace solutions that enable later scale-up for production.
High-Temperature Furnaces with MoSi₂ Heating Elements up to 1800 °C
These compact tabletop high-temperature furnaces are built with high-quality materials and user-friendly design, making them versatile tools for research and laboratory use. They are especially suited for applications like sintering technical ceramics, including zirconium oxide dental bridges.

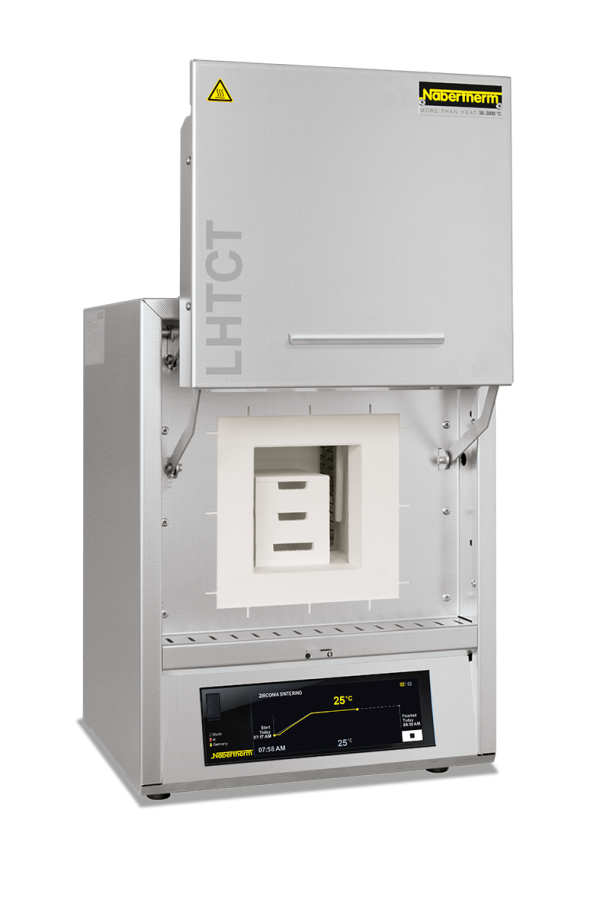

High-Temperature Furnaces with SiC Rod Heating up to 1600 °C
These high-temperature laboratory muffle furnaces, designed for use up to 1550 °C or 1600 °C, offer fast heating times of 25–30 minutes depending on the model. Equipped with durable SiC rods, they provide high heating speeds and reliable performance for a wide range of laboratory applications.

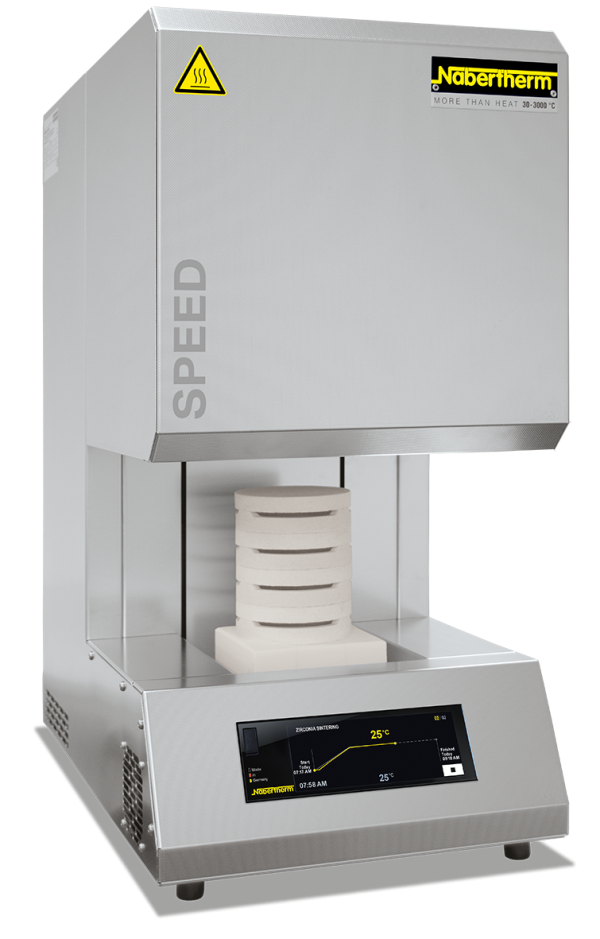

High-Temperature Bottom Loading Furnaces with molybdenum disilicide heating elements and fiber insulation up to 1650 °C
The LHT ../.. LB Speed high-temperature furnaces feature molybdenum disilicide heating elements for excellent chemical resistance and optimal temperature uniformity. An electric lifting table ensures easy and convenient loading, making these furnaces ideal for demanding laboratory applications.

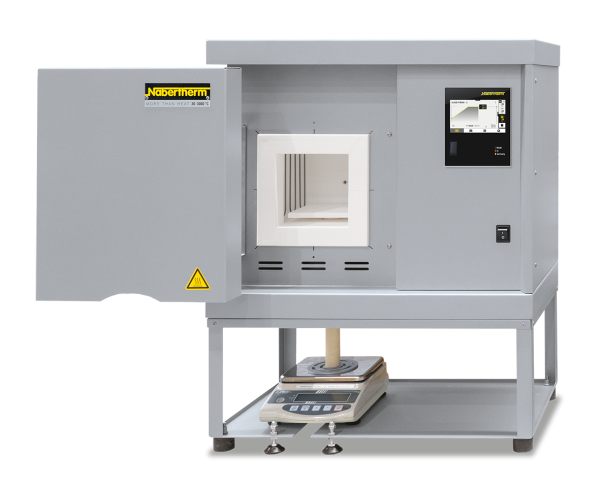

High-Temperature Furnaces with Scale for determination of combustion loss and thermogravimetric analysis (TGA) up to 1750 °C
These high-temperature furnaces, designed for combustion loss determination and thermogravimetric analysis (TGA), include a base, ceramic plunger, precision scale, and software package. The system supports temperatures up to 1600 °C or 1750 °C and enables precise recording of temperature curves and weight loss during annealing processes.

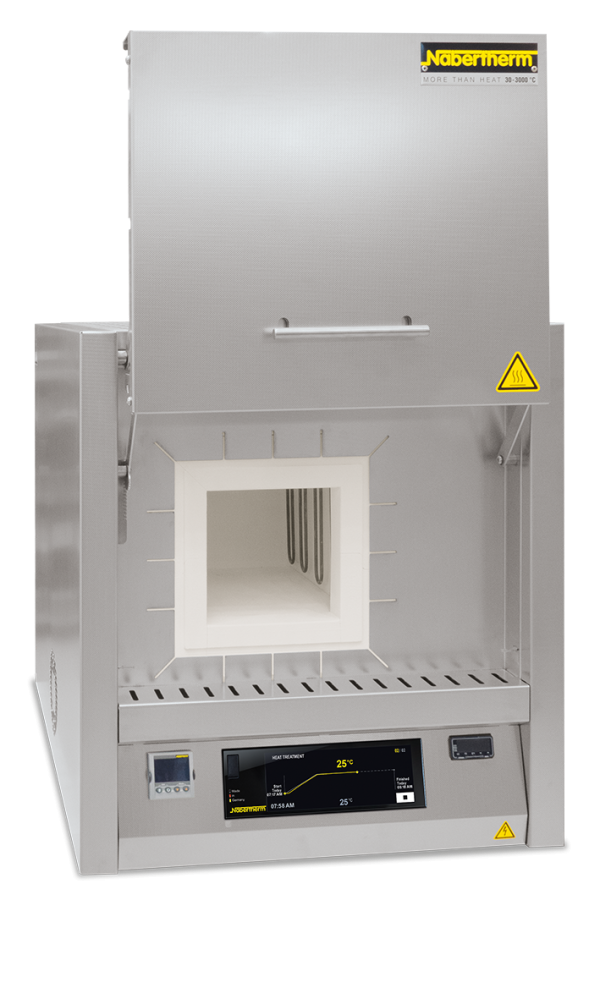

Combi High-Temperature Furnace LHT 08/17 BO up to 1750 °C with integrated catalytic post combustion
The LHT 08/17 BO combi furnace is designed for debinding, ashing (up to 600 °C), and high-temperature sintering (up to 1700 °C) in one unit. Compact and ideal for R&D and small additive manufacturing components, it features a passive safety system with integrated exhaust gas post combustion for safe and efficient operation with excellent temperature uniformity.

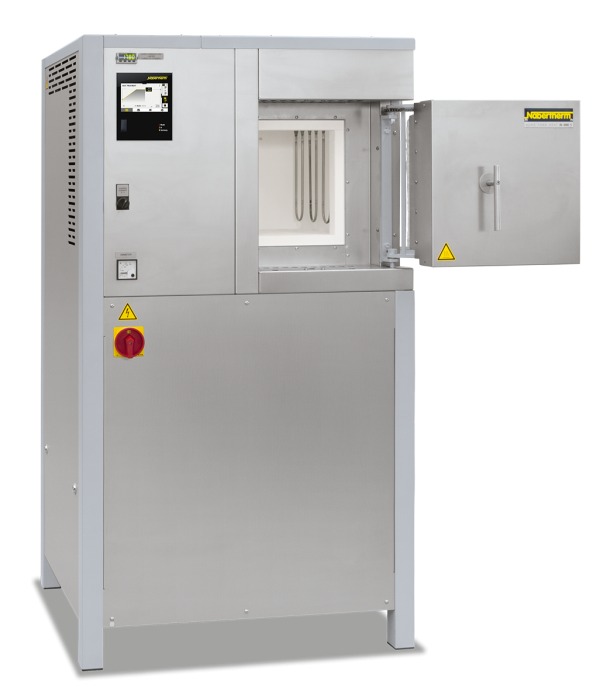

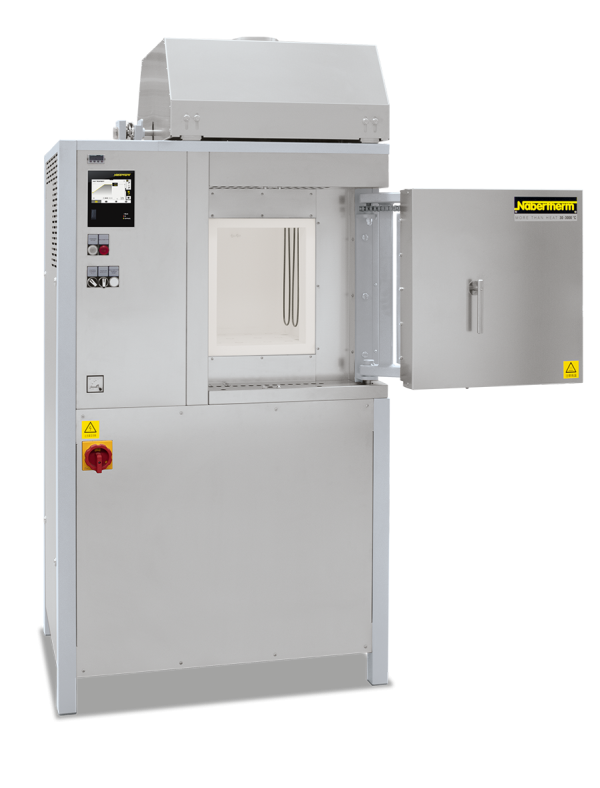

High-Temperature Furnaces with Molybdenum Disilicide Heating Elements and Fiber Insulation up to 1800 °C
These high-temperature furnaces feature a robust, compact design, ideal for precision laboratory processes. They offer outstanding temperature uniformity and can be customized with a wide range of optional accessories to meet specific application needs.

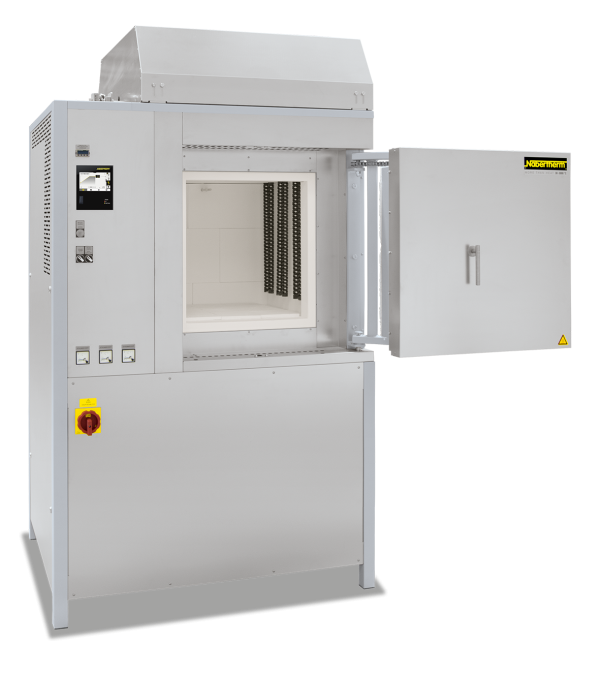

High-Temperature Furnaces with SiC Rod Heating and Fiber Insulation up to 1550 °C
The HTC 16/16 – HTC 450/16 high-temperature furnaces, heated by vertically hung SiC rods, are ideal for sintering processes up to 1500 °C. Especially suited for applications like zirconium oxide sintering, they minimize interaction between the charge and heating elements and can be customized with various optional upgrades similar to the HT series.
High-Temperature Furnaces with Molybdenum Disilicide Heating Elements and Refractory Brick Insulation up to 1700 °C
High-temperature furnaces HFL 16/16 – HFL 160/17 have a sturdy cladding made from refractory insulation. This design offers better protection if the process produces aggressive gases or acids, such as when glass is melted.
