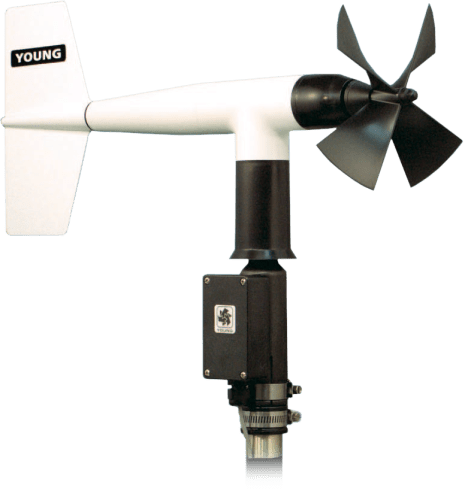

Wind Monitor - Model 05103

The Wind Monitor is a high performance wind sensor. Rugged, corrosion-resistant construction makes it ideal for a wide range of wind measuring applications.
The wind speed sensor is a four blade helicoid propeller. Propeller rotation produces an AC sine wave voltage signal. The wind direction sensor is a rugged yet lightweight vane. Vane angle is sensed by a precision potentiometer. Constructed of UV stabilized plastic with stainless steel and anodized aluminum fittings, the sensor mounts on standard 1 inch pipe. Model 05103V offers calibrated 0-5 VDC outputs, Model 05103L provides a calibrated 4-20 mA current signal for each channel.


0-100 m/s (224 mph), 0- 360°

Wind Speed: ±0.3 m/s (0.6 mph) or 1% of reading
Wind Direction: ±3 °

Operating Temperature:
-50 to 50°C

Propeller: 1.0 m/s (2.2 mph)
Vane: 1.1 m/s (2.4 mph)

Signal Output:
Wind speed: magnetically induced AC voltage, 3 pulses per revolution.
1800 rpm (90 Hz) = 8.8 m/s (19.7 mph)
Wind direction: DC voltage from conductive plastic potentiometer − resistance 10K Ω, linearity 0.25%, life expectancy − 50 million revolutions

Power Requirement:
Potentiometer excitation: 15 VDC maximum

37 cm (14.6 in) H x 55 cm (21.7 in) L, Propeller: 18 cm (7 in) dia.
Mounting: 34 mm (1.34 in) dia. (standard 1 inch pipe)

1.0 kg (2.2 lbs)

Shipping weight:
2.3 kg (5 lbs)

MODEL 05103V 0-5 VDC outputs
Power Requirement: 8-24 VDC (5 mA @ 12 VDC)
Output Signals: 0-5.00 VDC full scale

MODEL 05103L 4-20 mA outputs
Power Requirement: 8-30 VDC (40 mA max.)
Output Signals: 4-20 mA full scale
