Superdew 3 Hygrometer

Measure dewpoint in process gases and compressed air

Measure dewpoint in process gases and compressed air


Product Details

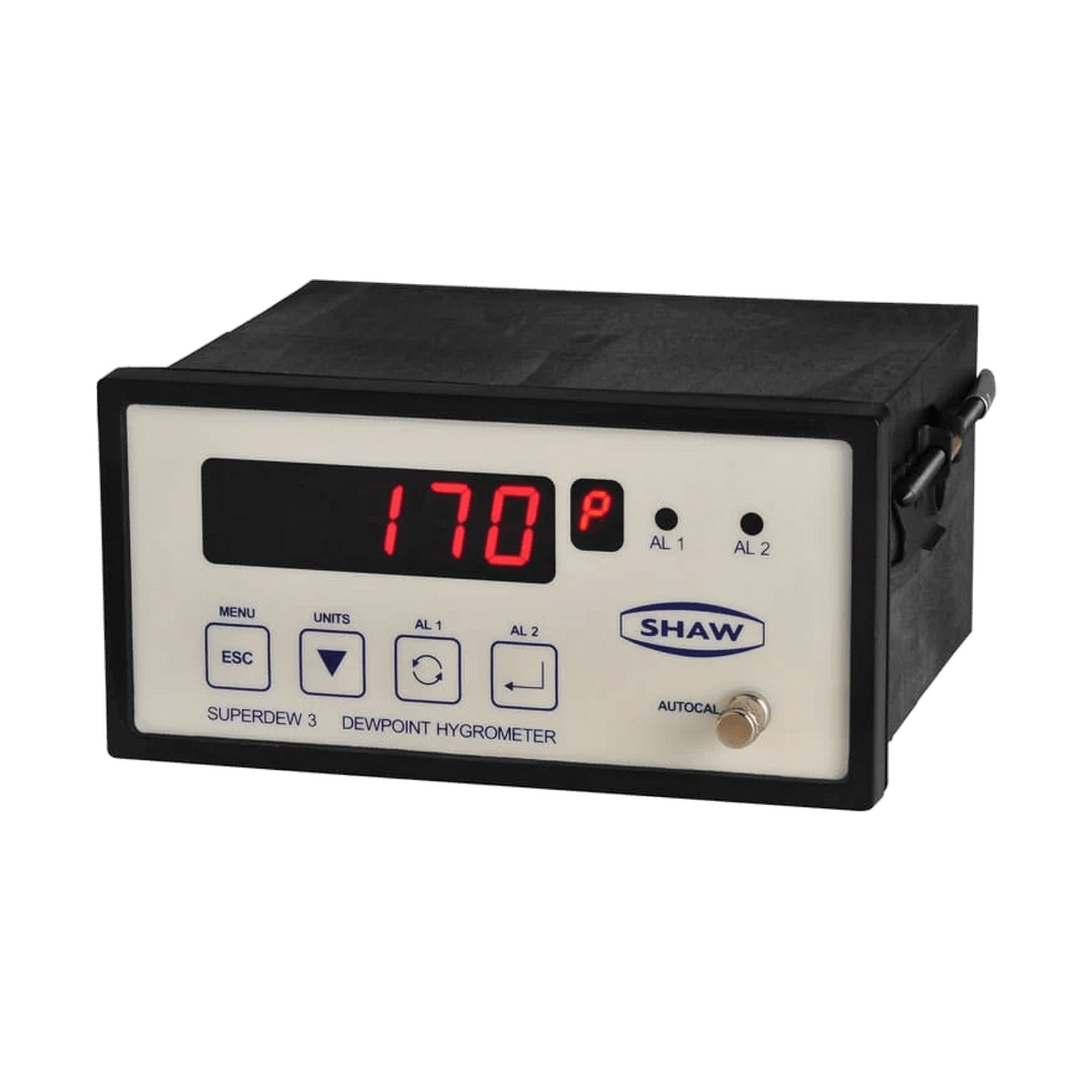

The Model Superdew 3 is a single channel inline hygrometer designed to measure dewpoint in process gases and compressed air. The panel mounted enclosure provides panel protection to IP54.

The combination of the highly accurate, repeatable SHAW moisture sensor and advanced digital electronics, make this the instrument of choice for a wide range of applications where precise measurement, control and monitoring is critical. Each dewpoint sensor is calibrated to provide overall system accuracy of better than ±2 °C (±3.6 °F) dewpoint and supplied with a Calibration Certificate traceable to National & International Humidity Standards.

The Superdew 3 can be user configured to display in °C, °F, ppm(v) or lb/MMSCF on an easy to read five character LED display.

The instrument offers two fully programmable alarm relays, which can be independently set across the full operating range of the dewpoint sensor. Set points can be viewed and adjusted from the front panel keypad.

An isolated 4 – 20 mA analogue output is supplied as standard. The span of this output can be configured across the range of the dewpoint sensor. The system allows for the Superdew 3 instrument to be sited in excess of 1,000 metres from the sensor.

The Superdew Dewpoint Hygrometer Package is fully configured according to the customer’s specifications and consists of the Superdew analyser, SHAW moisture sensor, sensor holder and two metres of sensor cable.



  • User selectable digital indication in °C, °F, ppm(v) or lb/MMSCF
  • Accuracy ±2 °C (±3.6 °F) dewpoint
  • Various ranges: overall range -100 °C to +20 °C (-148 °F to +68 °F) dewpoint
  • Universal input: 90 V to 250 V AC (24 V DC option available)
  • Automatic calibration (AutoCal)
  • Two alarms (view/adjust set points from front panel)
  • Linear isolated 4 – 20 mA retransmission signal, adjustable span
  • Fully interchangeable SHAW sensors and ranges
  • IP65 rated front panel
  • Large clear digital display with back light
  • Supplied with Calibration Certificate
