Portable Sample System for SDHMini

Portable Sample System

Portable Sample System

Loading...

Description

The Shaw Moisture Meters SDHmini Portable Sample System is designed to provide ideal sampling conditions for dewpoint measurement. This unit is an effective, self-contained sampling system, which ensures that the sample pressure and flow are suitable for dewpoint measurement.

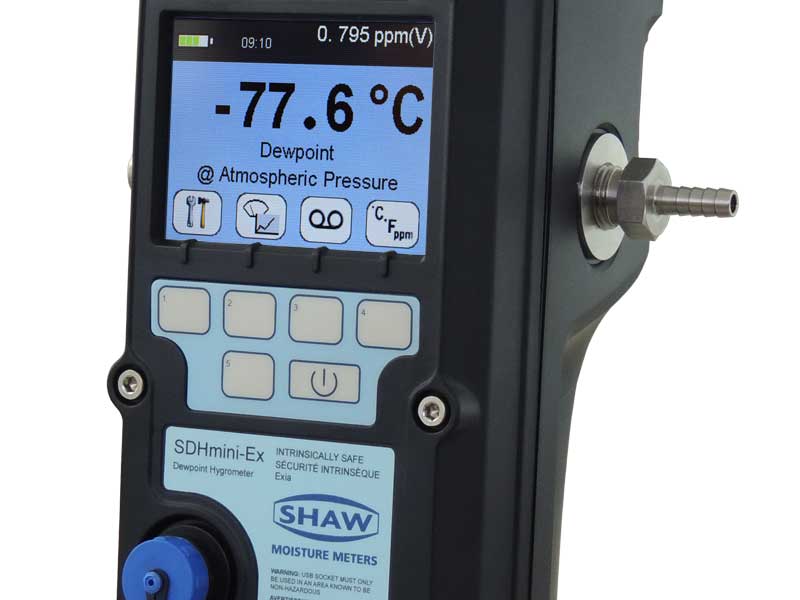

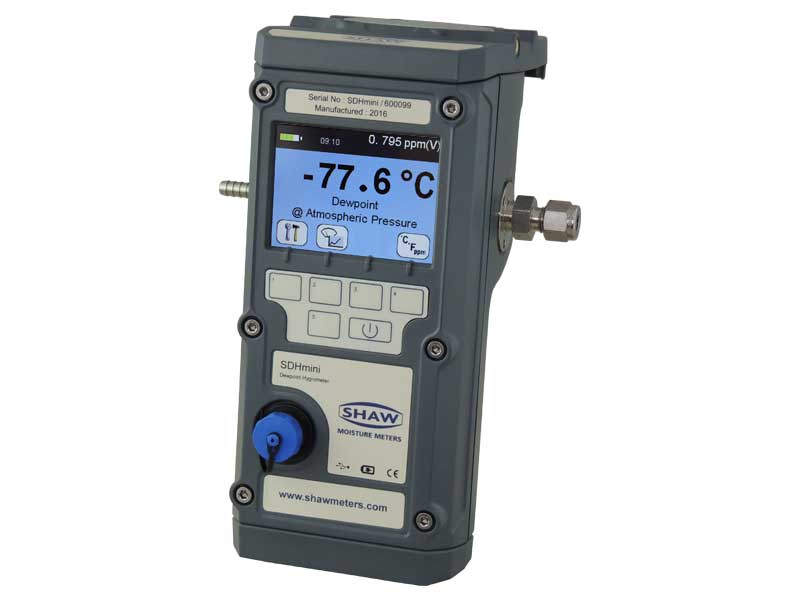

Simple to setup and install, the SDHmini Portable Sample System is fully configurable with options for a filter unit and pressure regulator on a chassis made from high quality 304 stainless steel and has been specifically designed to condition pressurised gas samples up to a maximum of 200barg (2,900PSI) for use with the SDHmini instrument range – standard, logging and intrinsically safe.

The SDHmini Portable Sample System comes complete with flow indicator, inlet and outlet connections, carrying case and instruction manual.

FEATURES

Features:

  • Designed for gas or general compressed air sampling
  • Instrument docking arrangement
  • Reduces inlet pressure from up to 200barg (2,900PSI)
  • Adjust sample flow 0 – 10 litres per minute
  • Optional particle filter with easy access for cartridge replacement
  • Inlet fittings with a choice of quick connect ¼”, ⅛” or 6 mm compression fittings
  • Various configurations available
  • Stainless steel chassis, fittings and pipework
  • Overall dimensions including carrying case: 270 mm (h) x 315 mm (w) x 245 mm (d)
  • Approximate weight with options added: – without instrument – 3.75 kg (8.3 lbs) with instrument – 5.5 kg (12 lbs)
  • Optional two metre braided PTFE sample hose available

SPECIFICATION

SPECIFICATIONS
Chassis 304 stainless steel
Internal Pipework 316 stainless steel
Internal Fittings 316 stainless steel
Inlet Fittings Choice of quick connect ¼”, ⅛” or 6 mm compression fittings • Flow Indicator Up to 10 litres per minute
Filter Unit (when fitted) High grade stainless steel with removable housing for access to replaceable filter cartridges, 0.1 micron filter cartridge
Pressure Regulator (where applicable) High grade stainless steel Pressure range 0 – 200barg (2,900PSI)
Needle Valve (where applicable) 316 high grade stainless steel
Overall Dimensions 315 mm (w) x 245 mm (d) x 270 mm (h)
Weight Without instrument – 3.75 kg (8.3 lbs) With instrument – 5.5 kg (12 lbs)
Carrying Bag Anti-static PVC foam faux leather with rubber feet
