SKU:

AQUALAB TDL 2

Precise aW readings even on volatile samples

Precise aW readings even on volatile samples

Loading...

Description

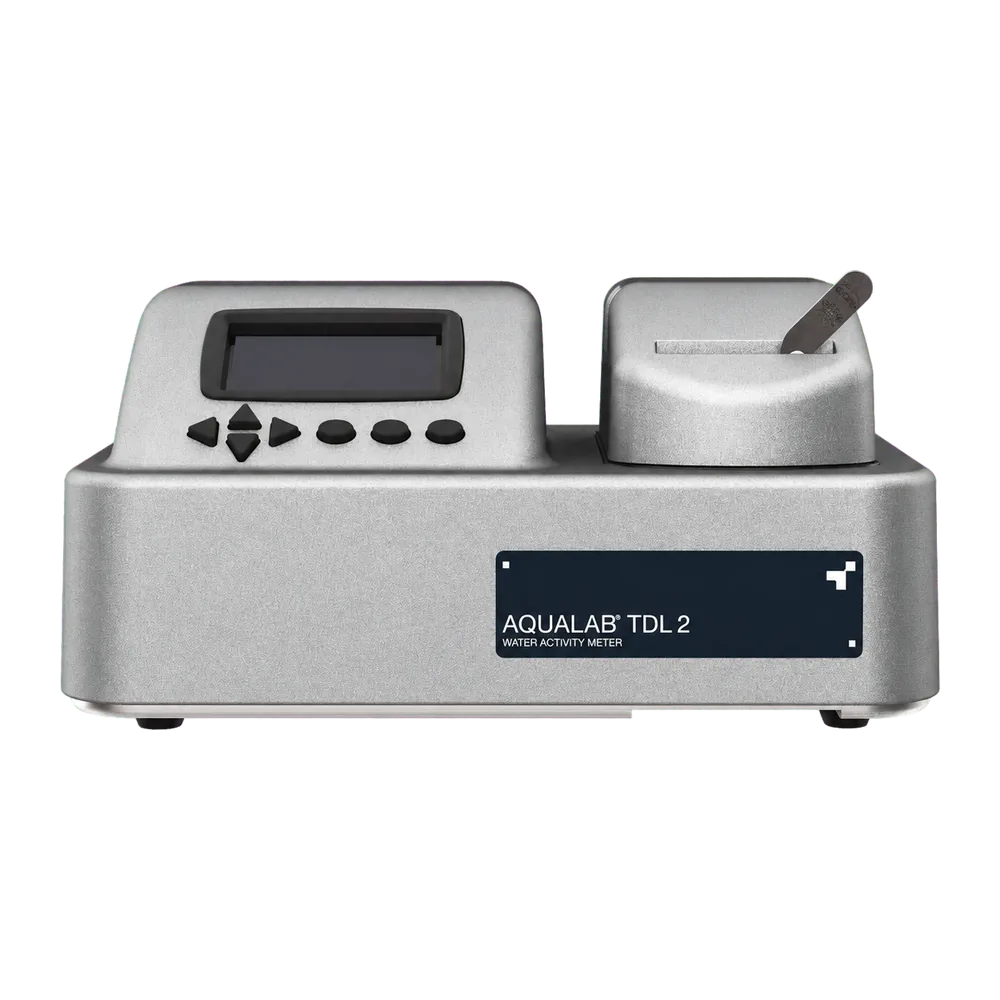

AQUALAB TDL 2

Precise water activity data for even the most volatile samples.

Laser precision

TDL uses a laser beam (tunable laser diode) less than one nanometer wide, tuned to the absorption band of water. It measures water molecules no matter the concentration of volatiles—even soy sauce, gasoline, and tobacco. Readings are so precise, you can even measure water activity in pure alcohol.

Respected by customers and third-party scientists alike, the TDL (tunable laser diode) delivers readings you can trust no matter what the sample contains.

All-around accuracy

Sauces, spices, tobacco, and other volatile samples, are known to be difficult to read accurately—TDL can measure even the most challenging volatiles. The Cooperation Centre for Scientific Research Relative to Tobacco (CORESTA) specifies the TDL as the only sensor for accurate water activity in tobacco products.

The secret to the AQUALAB TDL 2’s precision is in its unique laser technology. The laser beam—less than one nanometer wide—locks on to water molecules no matter the concentration of volatiles. Its sensor has no moving parts and is housed in a fully sealed sample chamber.

Feature summary

  • Accurate:  ±0.005 aw
  • Accurately read any sample, including those with volatiles
  • Verifiable with independent salt standards
  • Repeatable: different users, different locations, same result
  • Portable: weighs just 7 pounds
  • Easy to use: precise aw readings with minimal training
  • Secure: offers administrative control over calibration and data
  • Accurate to ±0.005aw
  • Read any sample, even highly volatile compounds, with no filters or fuss
  • Quick: readings in five minutes or less
  • Verifiable with independent salt standards
  • Easy to use: precise water activity readings with minimal training
  • Low maintenance: no moving parts to wear out
  • Secure: offers administrative control over calibration and data
  • Repeatable: different users, different locations, same result
  • Portable: weighs just 7 pounds
  • One minute predictive readings available

Additional information

Brands

SPECIFICATION

SPECIFICATIONS
Water Activity
Range: 0.0000 to 1.0000 aw
Resolution: 0.0001 aw
Accuracy: ±0.0050 aw at 25 °C
Repeatability: 0.0010 aw
Sensor Type: Tunable diode laser
Moisture Content
Accuracy: 0.1%–0.5% to moisture content reference*
Repeatability: 0.02%
Temperature
Range: 15–50 °C
Resolution: 0.01 °C
Accuracy: ±0.10 °C
Adjustment Increment: 1 °C
Case Dimension: Length:26.7 cm (10.5 in)

Width:17.8 cm (7.0 in)

Height:12.7 cm (5.0 in)

Case Material POLYLAC PA-765 (ABS) with fire retardant
Display 64 × 128 graphical
Power 85-264 VAC; 47-63 Hz
Sample Cup Capacity 14 mL (0.47 fl oz)
Operating Environment 4.00 °C – 50.00 °C
Weight 3.1 kg  (6.8 lb)
Data Communications USB A and RS-232 serial 9,600–115,000 baud
Compliance Manufactured under ISO 9001:2015 EM / ISO/IEC 17050:2010 / (CE Mark)
